Magnetite Beneficiation Solutions

Solution Overview

Magnetite production line and process solutions provide a variety of modernized process options for magnetite ore beneficiation, including two major process routes: "weak magnetic - reverse flotation" and "full magnetic separation". Through the combination of new magnetic separation equipment and advanced processes, the grade of iron ore concentrate can be increased to more than 68% and the SiO₂ content can be reduced to less than 4.5%, which can satisfy the demand of modern iron and steel industry for high quality iron ore concentrate.

Magnetite ore beneficiation process details

Weak magnetization-reverse flotation process

Cation reverse flotation process:

• Stage grinding-weak magnetic separation (up to -0.074mm accounts for 80%)

• Fine sieve grading (sieve hole 0.1mm)

• Cation reverse flotation (one rougher and one finer)

• Froth product regrinding and re-election

• Concentrate grade up to 68.88

Anionic reverse flotation process:

• Weak Magnetic Separation Roughing

• Thickening and dewatering

• Anionic reverse flotation (one roughing and three sweeps)

• Concentrate grade up to 67.22

Full Magnetic Separation Process

• Three-stage grinding-magnetic separation (90% to -0.045mm)

• High-frequency fine screen grading (0.075mm mesh)

• Magnetic Separation Column Concentration

• Middle ore regrinding and re-separation

• Concentrate grade up to 69

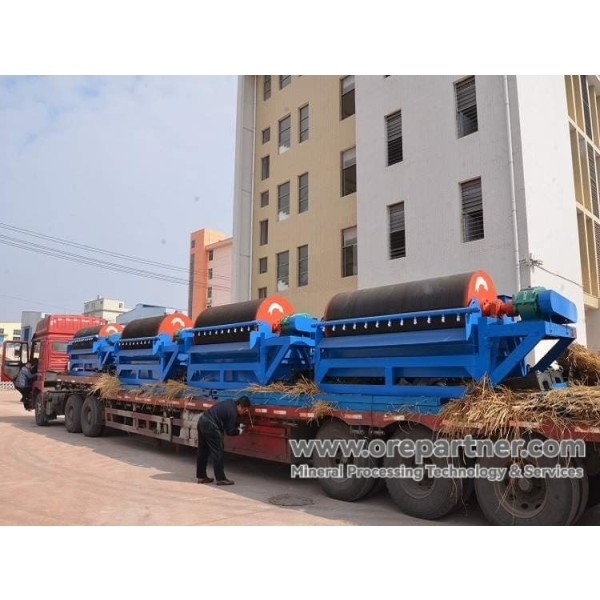

Magnetic separator production line core equipment configuration

Technical Advantages

High quality concentrate

• Iron grade up to 67% or more

• SiO₂content≤4.5%.

• Low content of harmful impurities

Flexible choice of process

• According to the nature of the ore to choose the reverse flotation or full magnetic process

• Can process fine-grained magnetite (-0.045mm)

• Adapt to different grades of raw ore

Environmental protection and energy saving

• Full magnetic process is environmentally friendly with no chemicals added.

• New magnetic separation equipment reduces energy consumption by 30%.

• Water recycling utilization rate ≥90

Stable and reliable

• High degree of automation control, easy to operate

• Wear-resistant design, low maintenance cost

• Stable operation and large processing capacity

Cooperation process with OrePartner

Step 1: Ore sample analysis and testing

Sample requirements:

• Representative ore samples

• Provide basic ore information (origin, deposit type, etc.)

• Indicate special requirements or concerns

Experimental content:

• Detailed process mineralogical studies

• Magnetic selectivity test

• Process optimization experiment

• Concentrate product quality analysis

Step 2: Experimental report and technical program

The report contains:

• Detailed ore property analysis

• Recommended process program

• Expected technical and economic indicators

• Equipment configuration list and investment estimation

• Operating cost analysis and economic benefit forecast

Step 3: Decision-making and project implementation

Based on the results of the experimental report, the customer can decide to

• Adopt the recommended program and enter the engineering design stage

• Adjust the optimization plan and conduct additional tests

• Suspend the project and keep the technical data

Technical services and support

Pilot study services

• Ore process mineralogical studies

• Selectivity testing and process validation

• Expanded continuous testing

• Provide authoritative test reports

Engineering Design Services

• Process design and optimization

• Equipment selection and configuration program

• Plant layout and construction design

• Automation control system design

Production support services

• Equipment installation and commissioning guidance

• Formulation of operating procedures and personnel training

• Production technology optimization and transformation

• Long-term technical consulting services

Environmental solutions

• Tailings treatment system design

• Wastewater recycling solutions

• Dust control system design

• Technical support for environmental compliance

Process Selection Suggestion

High-grade magnetite ore:

• Adopt full magnetic sorting process

• Simple process, low operating cost

• Environmentally friendly and non-polluting

Complex associated magnetite:

• Weak magnetization-reverse flotation combined process

• Can effectively separate the coexisting minerals

• Improve the quality of concentrate

Fine-grained embedded magnetite:

• Adopt stage grinding stage separation process

• Fine screening stage to control the particle size

• Ensures monomer dissociation

OrePartner - your trusted partner for magnetite beneficiation!
We have rich experience in magnetite beneficiation projects, and can provide the most economic and efficient magnetite beneficiation solutions according to your ore characteristics and production needs.

Feel free to contact our professional technical team for customized solutions and detailed quotes!
